尺寸(C-T) |
430mm, 470mm, 510mm, 550mm |
|
顏色 |
LG WHITE, MING BLUE, YELLOW |
|
重量 |
11.26kg(470mm) |
|
變速器 |
SHIMANO SORA (18SPEED) |
|
車架材質 |
6061 ALUMINUM |
|
前叉 |
ALLOY |
|
車頭碗組 |
FSA NO.23/CC 1-1/8” ALLOY INTEGRATED |
|
車手把 |
ALLOY RACING DROP(400/430mm, 470mm, 510mm, 420/550mm) |
|
龍頭立管 |
ALLOY A-HEAD ANGEL7DEGREE (80/430mm, 90/470mm, 100/510mm, 110/550mm) |
|
曲柄大盤組 |
FSA VELO COMPACT 50X34T(165/430mm, 170/470mm, 510mm, 175/550mm) |
|
五通BB |
FSA BB-7420ST 110.5mm(68mm) |
|
踏板 |
PLASTIC NYLON |
|
前變速器 |
SHIMANO SORA |
|
後變速器 |
SHIMANO SORA |
|
變速把手 |
SHIMANO SORA |
|
煞車夾器 |
TEKTRO MECHANICAL DISC |
|
煞車把手 |
SHIMANO SORA |
|
飛輪 |
SHIMANO CS-HG50 11-32T 9SPD |
|
鍊條 |
SHIMANO CN-HG53 |
|
座墊 |
SDG BEL-AIR2.0 |
|
座管 |
ALLOY 27.2mm(350mm) |
|
花鼓 |
ALLOY QR DISC 32H |
|
鋼絲 |
STAINLESS |
|
輪圈 |
ALLOY 700C |
|
外胎 |
WTB FREEDOM RYDER 700X32C |

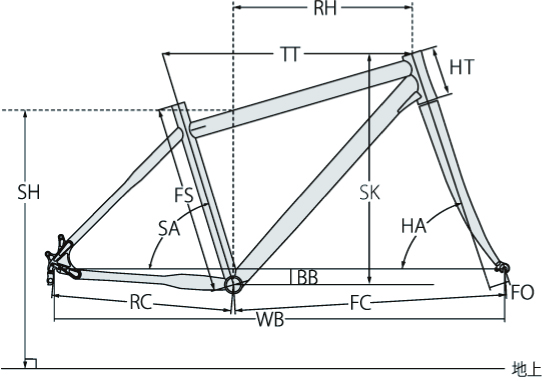

FRAME GEOMETRY / フレーム ジオメトリ
|
Frame Size |
430 |
470 |
510 |
550 |
|
Head Angle |
69.5° |
70.5° |
71° |
71° |
|
Seat Angle |
75° |
75.5° |
75.5° |
75° |
|
Top Tube (Horizontal) |
515 |
520 |
530 |
540 |
|
Head Tube |
110 |
110 |
130 |
130 |
|
Front Center |
602 |
603 |
610 |
615 |
|
Rear Center |
415 |
415 |
415 |
415 |
|
BB Drop |
70 |
70 |
70 |
70 |
|
Fork Offset |
50 |
50 |
50 |
50 |
|
Wheel Base |
1007 |
1008 |
1015 |
1020 |
|
Stand Over Height |
688 |
721 |
756 |
785 |
|
Stack |
527 |
531 |
552 |
552 |
|
Reach |
374 |
383 |
387 |
392 |
|
適応身長(cm) |
155 ～170 |
165 ～180 |
175 ～190 |
185 ～200 |
|
FS |
FRAME SIZE |
BB |
BB DROP |
|
HA |
HEAD ANGLE |
FO |
FORK OFFSET |
|
SA |
SEAT ANGLE |
WB |
WHEEL BASE |
|
TT |
TOP TUBE |
SH |
STAND OVER HEIGHT |
|
HT |
HEAD TUBE |
SK |
STACK |
|
FC |
FRONT CENTER |
RH |
REACH |
|
RC |
REAR CENTER |
|
|
